Professional
Aluminum Processing Team

Can be manufactured around
the clock, 7 days a week.

  • Type

  • Extrusion Heat sink

  • Process

  • Extrusion

  • Extra Process

  • Extrusion+CNC Machining

  • Material

  • AL 6061、AL6063

  • Size/Color

  • customized

  • Surface  treatment

  • Sandblasting, Wire Drawing, Painting, Electroplating, Anodizing

  • Quality Control

  • full inspection

  • Application

  • Mechanical Equipment、Source、Electronic Devices

  • OEM

  • Accept

Extrusion 004
more
inquire Resource downloads

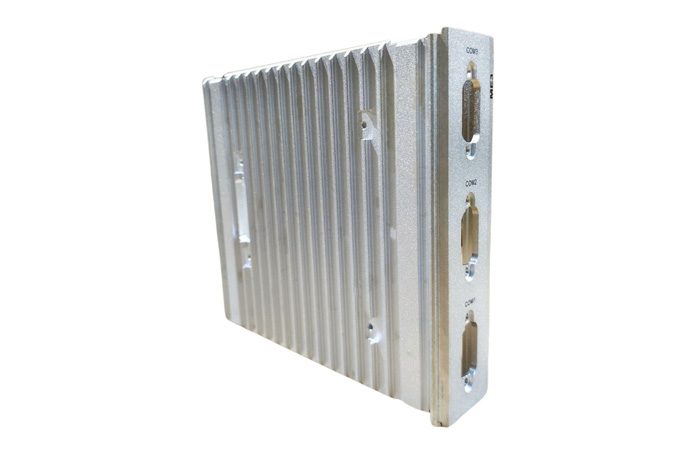

Large extruded aluminum heatsink for industrial VFD and inverter power module cooling

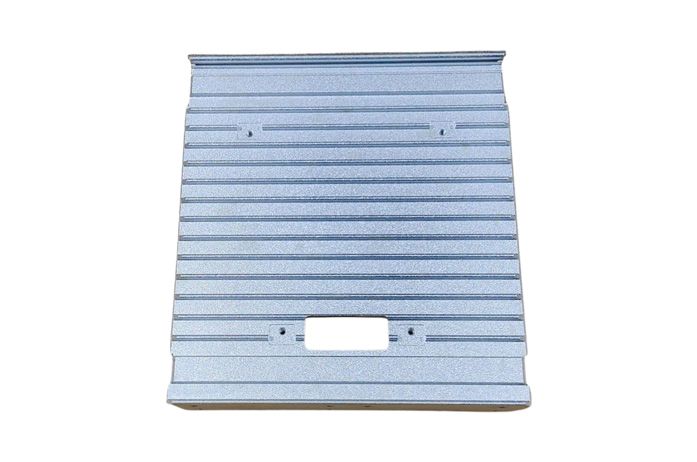

Variable frequency drive thermal management with high-density fin AL6061-T6 extruded profile
Detail of extrusion die lines and post-extrusion surface finish on aluminum heat sink

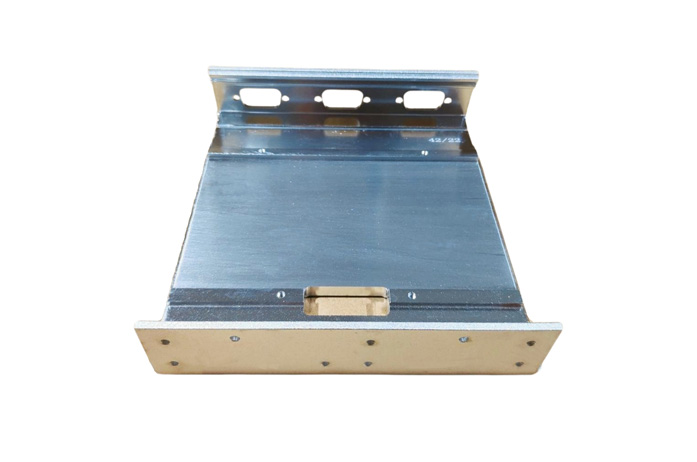

Extruded aluminum heatsink for switching power supply thermal management in industrial applications
Large extruded aluminum heatsink for industrial VFD and inverter power module cooling
Variable frequency drive thermal management with high-density fin AL6061-T6 extruded profile
Detail of extrusion die lines and post-extrusion surface finish on aluminum heat sink
Extruded aluminum heatsink for switching power supply thermal management in industrial applications

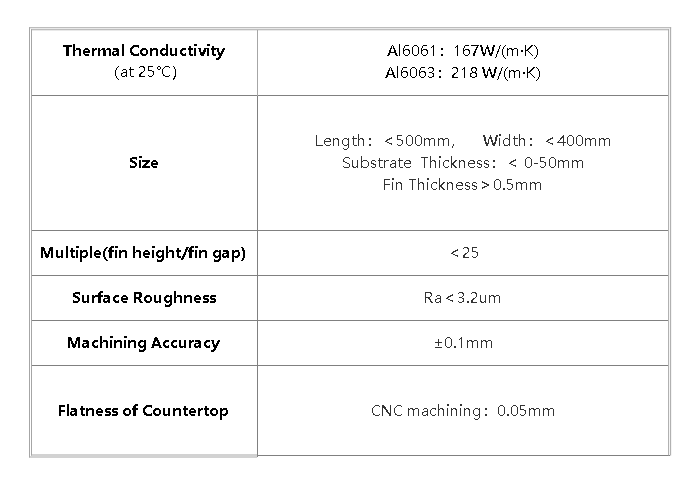

CHARACTERISTICS
KEY POINT OF DESIGN

Key points of profile heat sinks design

1、The appearance of the heat sink should consider aesthetics and space utilization efficiency.

2、The internal flow channels of the heat sink should be as simple as possible to ensure smooth flow of the cooling medium.

3、Design the shape and size of the heat sink according to actual needs to increase the heat transfer area.

4、A reasonable support structure should be designed at the bottom of the heat sink to improve its stability and structural strength.
