Professional
Aluminum Processing Team

Can be manufactured around
the clock, 7 days a week.

  • Type

  • Skived Fin Heat sink

  • Process

  • Skiving

  • Extra Process

  • Skiving+CNC Machining

  • Material

  • AL1060、AL 6061、AL6063、Cu1100、Cu1020

  • Size/Color

  • customized

  • Surface  treatment

  • Sandblasting, Wire Drawing, Painting, Electroplating, Anodizing

  • Quality Control

  • full inspection

  • Application

  • Automobile、Inverter、Communication

  • OEM

  • Accept


Skived Fin 003
more
inquire Resource downloads
Walmate custom skived fin heatsink for PV inverter IGBT cooling with aluminum 6063 or copper options
Skived fin geometry with uniform pitch and integrated base for outdoor solar power electronics reliability
Corrosion-resistant surface treatment and flatness ≤0.05mm/100mm for optimal IGBT contact thermal performance
Walmate skived heatsink mounted inside a photovoltaic inverter cabinet for solar farm energy conversion
Walmate custom skived fin heatsink for PV inverter IGBT cooling with aluminum 6063 or copper options
Skived fin geometry with uniform pitch and integrated base for outdoor solar power electronics reliability
Corrosion-resistant surface treatment and flatness ≤0.05mm/100mm for optimal IGBT contact thermal performance
Walmate skived heatsink mounted inside a photovoltaic inverter cabinet for solar farm energy conversion

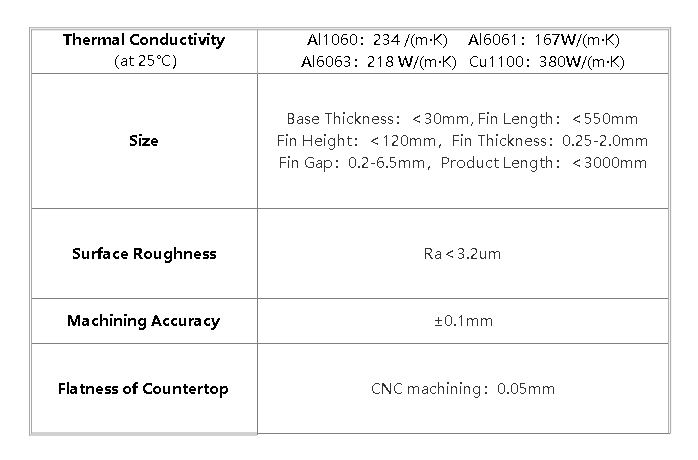

CHARACTERISTICS
KEY POINT OF DESIGN

Key points of skived  fin heat sink design

1、Fin design considerations:Overall consideration should be given to heat exchange area, wind speed, heat exchange efficiency, Fin sheets that are too thin are prone to deformation, while those that are too dense can affect heat dissipation.

2、Determine the size of the heat sink based on usage and heat dissipation needs. The internal flow channels of the radiator should be as simple as possible to ensure smooth flow of the cooling medium.
